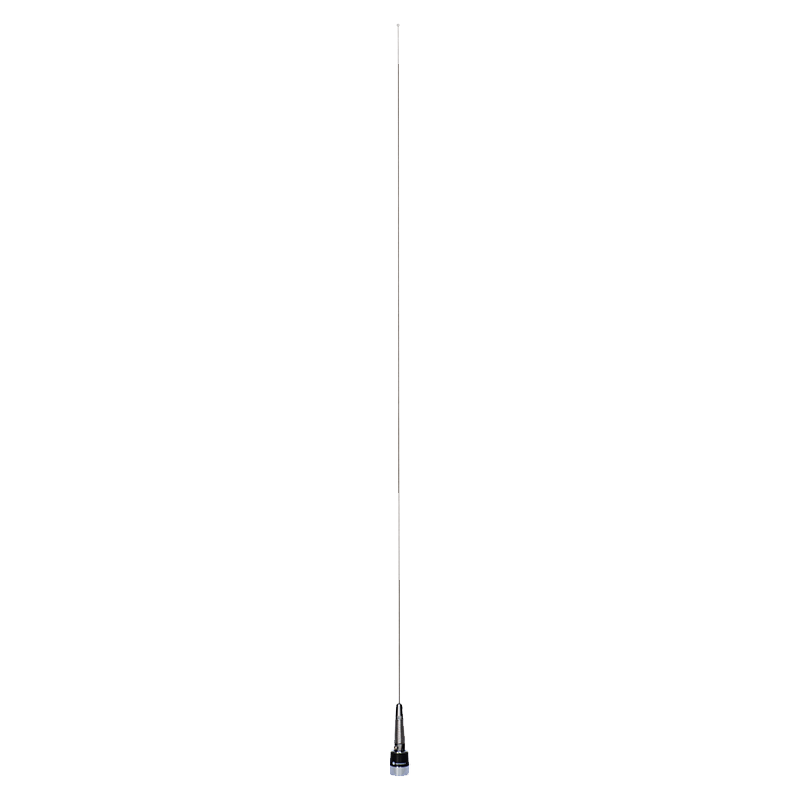

The Motorola HAD4022 is a VHF (132 - 174 MHz), 3.0 dB gain through-hole mount antenna. It is compatible with Motorola CM200D, CM300D, and XPR 2500 mobile radios as well as several Icom and APX models.
The HAD4022 has a signal that radiates vertically, making it ideal for urban environments where buildings can obstruct the signal.
This antenna requires either a 3/4" hole be drilled on the roof of the vehicle or a right-angle mounting bracket with a 3/4" hole must be used to mount the antenna. Included with the HAD4022 is approximately 12 feet of coax and a loose Mini-UHF male connector that will need to be crimped on the coax.
NOTE: VX2100 / VX2200 mobile radios and all ICOM mobile radios using this antenna also require the adapter
Motorola HAD4022 Antenna Highlights
- 3.0 dB Gain
- 5/8 Wave
- Vertically radiating signal
- Utilizes VHF (132 - 174 MHz)
- 1 year Motorola warranty
HAD4022 Specifications
| Dimensions (H) | 56 in. |
| Frequency Band | VHF |
| Frequency Range | 132 - 174 MHz |
| GPS Capable | No |
| Gain | 3.0 dB |
| Antenna Type | 1/4 Wave |
| Type or Style | Mobile Antenna |
| Mounting Style | Through-Hole |
| Color | Chrome |
| Warranty | 1 Year Manufacturer’s Warranty |
